Merida | SKU:
Q423
Sold out
Sold out
Sold out

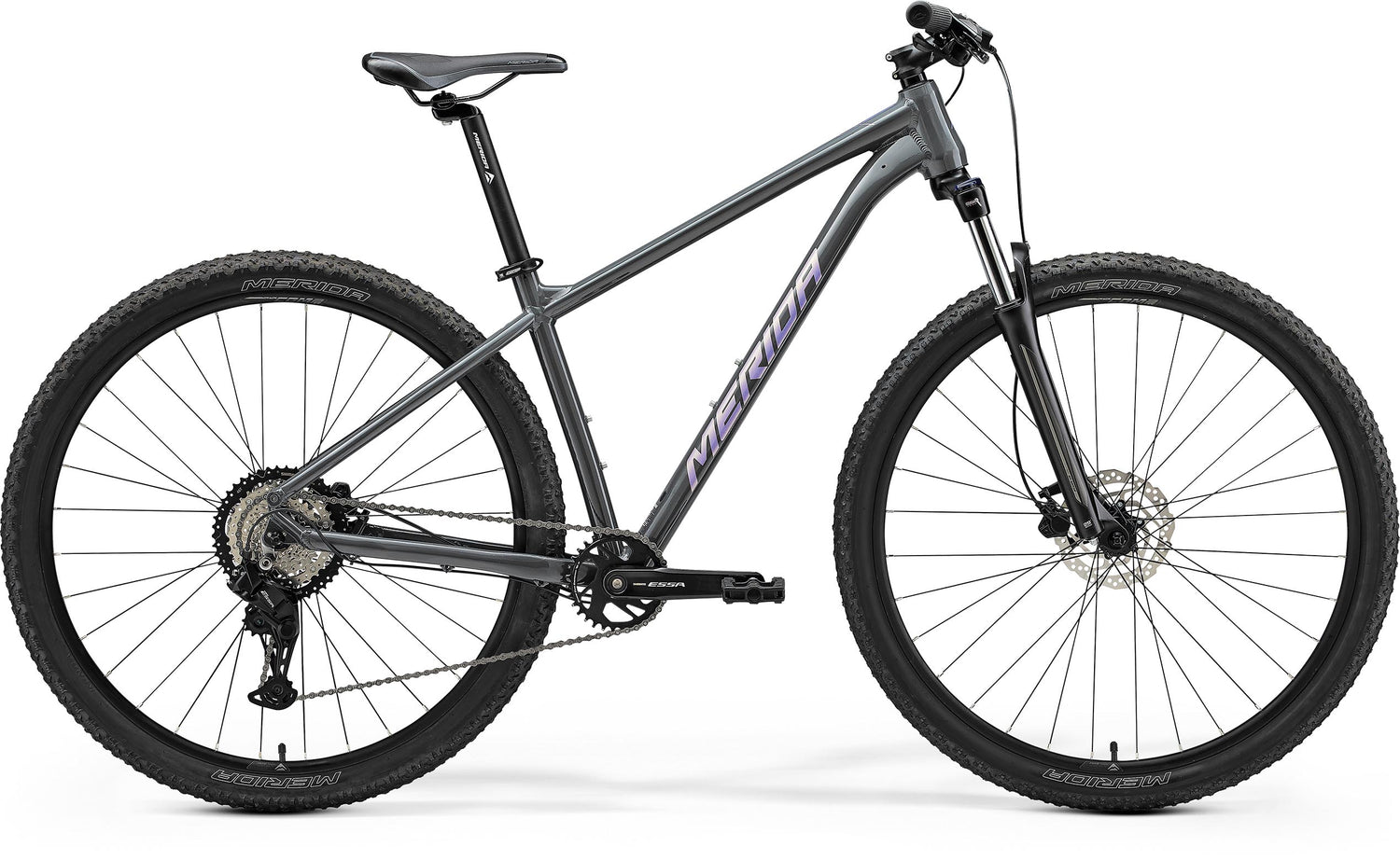

Big Nine 20 - Dark Grey/Purple - MY25
£700.00 GBP
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Big Nine 20 - Dark Grey/Purple - MY25 - XXL is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping calculated at checkout.
Bikes from our warehouse take a little longer to arrive and we test them before dispatch to make sure they're super ready-to-ride when they arrive.
Big Nine 20 - Dark Grey/Purple - MY25
£700.00 GBP
Unit price
/
Unavailable
Hand picked and we know them inside out
01828 920055
Description
Description
29er hardtail with sophisticated TFS aluminium frame, Shimano 1 x 8 drivetrain, SR Suntour lockout fork, hydraulic disc brakes, Shimano hubs, cassette, BB and chainset.
Specification
Frame
- TFS IV - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29" x 2.25"
Fork
- SR Suntour XCT30 HLO; Coil; 100mm travel; lockout; Max tyre size 29" x 2.25"
Gears
- 8
Shifters
- Shimano ESSA SL-315-8
Rear Derailleur
- Shimano Essa RD-U2000-8; GS
Bottom Bracket
- Shimano BB-UN101 73-123
Chain
- KMC Z8.3
Chainset
- Shimano ESSA FC-U2001 32 tooth chainset; Aluminium; Crank length - 170mm (S), 175mm (M and up)
Cassette
- Shimano CS-HG400-8; 11-45 teeth; 8 speed
Brake Lever
- Tektro M275
Front Brake
- Tektro HD-M275; hydraulic disc brake caliper with Shimano RT10; 160mm rotor
Rear Brake
- Tektro HD-M275; hydraulic disc brake caliper with Shimano RT10; 160mm rotor
Grip
- Merida EC
Handlebar
- Merida CC; aluminium; 690mm wide; 15mm rise
Stem
- Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Length - 70mm (S), 80mm (M), 90mm (L), 100mm (XL), 110mm (XXL)
Head Set
- Merida M2345
Pedal
- VP VPE-891
Saddle
- Merida Sport comfort
Seat Post
- Merida CC; 30.9mm diameter; 15 mm layback; Aluminium
Wheel Size
- 29"
Rims
- Merida CC; 17mm inner rim width; Aluminium
Spokes
- Black steel
Front Hub
- Shimano TX505; 100 x 9mm; 32 spoke; Centerlock
Rear Hub
- Shimano TX505; 135 x 9mm; 32 spoke; Centerlock
Front Tyre
- Merida K1080; 29" x 2.2"; wire bead
Rear Tyre
- Merida K1080; 29" x 2.2"; wire bead
Colour
- Dark Grey/Purple
Season
- 2025
