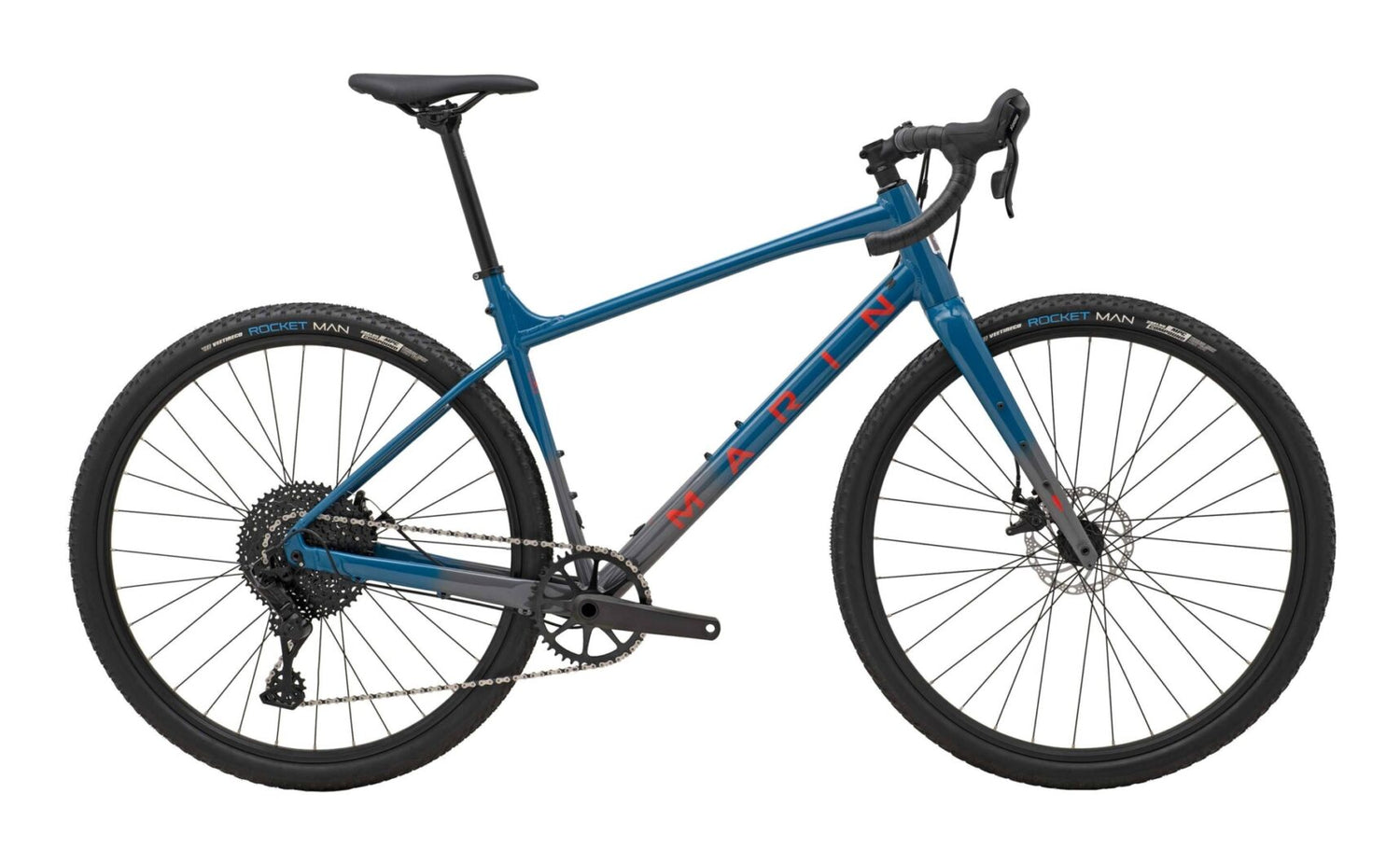

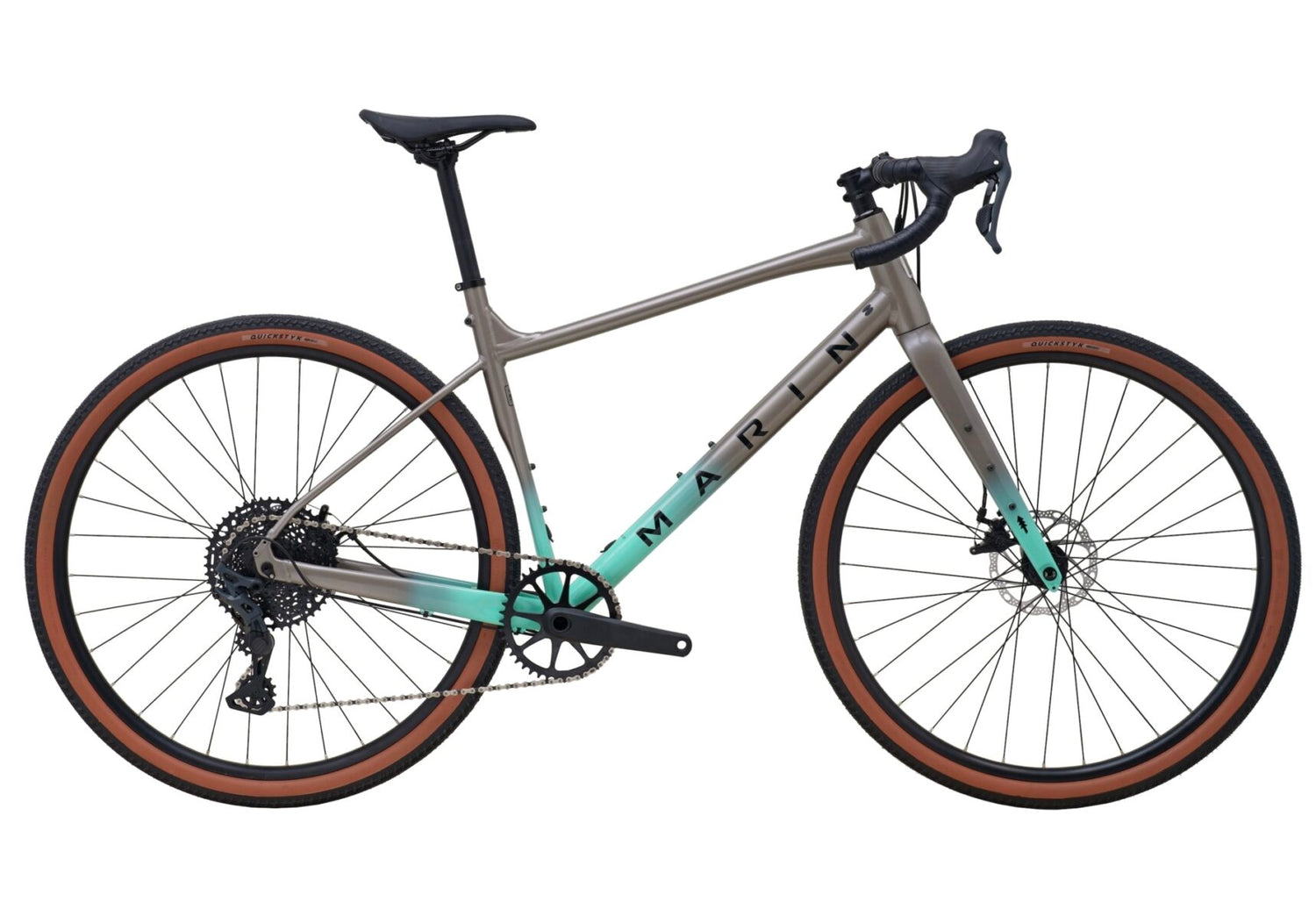

The Gestalt X is the mountain biker’s drop bar bike, with reliable and simple 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.

Specifications

Frame

Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

Fork

Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

Rims

Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific

Hub, Rear

Forged Aluminum Alloy, Disc, 32H

Hub, Front

Forged Aluminum Alloy, Disc, 32H

Spoke, Nipples

14g Black Stainless Steel

Tires

Vee Tire Co., Quickstyx, 700x45, Tubeless Compatible

Derailleur, Rear

microSHIFT SWORD 10-Speed Wide-Range

Derailleur, Front

-

Shift Lever

microSHIFT SWORD, 10-Speed

Crankset

Forged Alloy 1x10, Hollow CrMo Spindle, Narrow Wide 42T

Bottom Bracket

External Sealed Cartridge Bearings

Chain

KMC X10

Cassette

microSHIFT SWORD 10-Speed, 11-48T

Brake, Front

Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor

Brake, Rear

Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor

Brake Levers

microSHIFT SWORD

Handlebar

Marin Butted Alloy, Compact 16º Flared Drop

Stem

Marin 3D Forged Alloy

Grips

Marin Shock Absorbing Perforated Tape

Headset

FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Seatpost

Marin Alloy, 27.2mm

Saddle

Marin Beyond Road Concept

Pedals

-

Extras

Bolt-On Thru-Axles F and R
